Eli and Edythe Broad Art Museum.

Zaha Hadid’s statement art gallery on the campus of Michigan State University provides striking contrast with neighbouring neo-gothic, red-brick buildings. Its sharp features are intended to be reflective of surrounding topography and movement flows, but create a complex geometry that demanded a rational approach to structural design.

Statement art gallery at Michigan State University clad in layers of folded steel

Location
East Lansing, MI, USA
Client
Michigan State University
Architect
Zaha Hadid Architects
Project Value
£ 18.6 million
Floor Area
4,300 m²
Status
completed 2012
Expertise
Structures

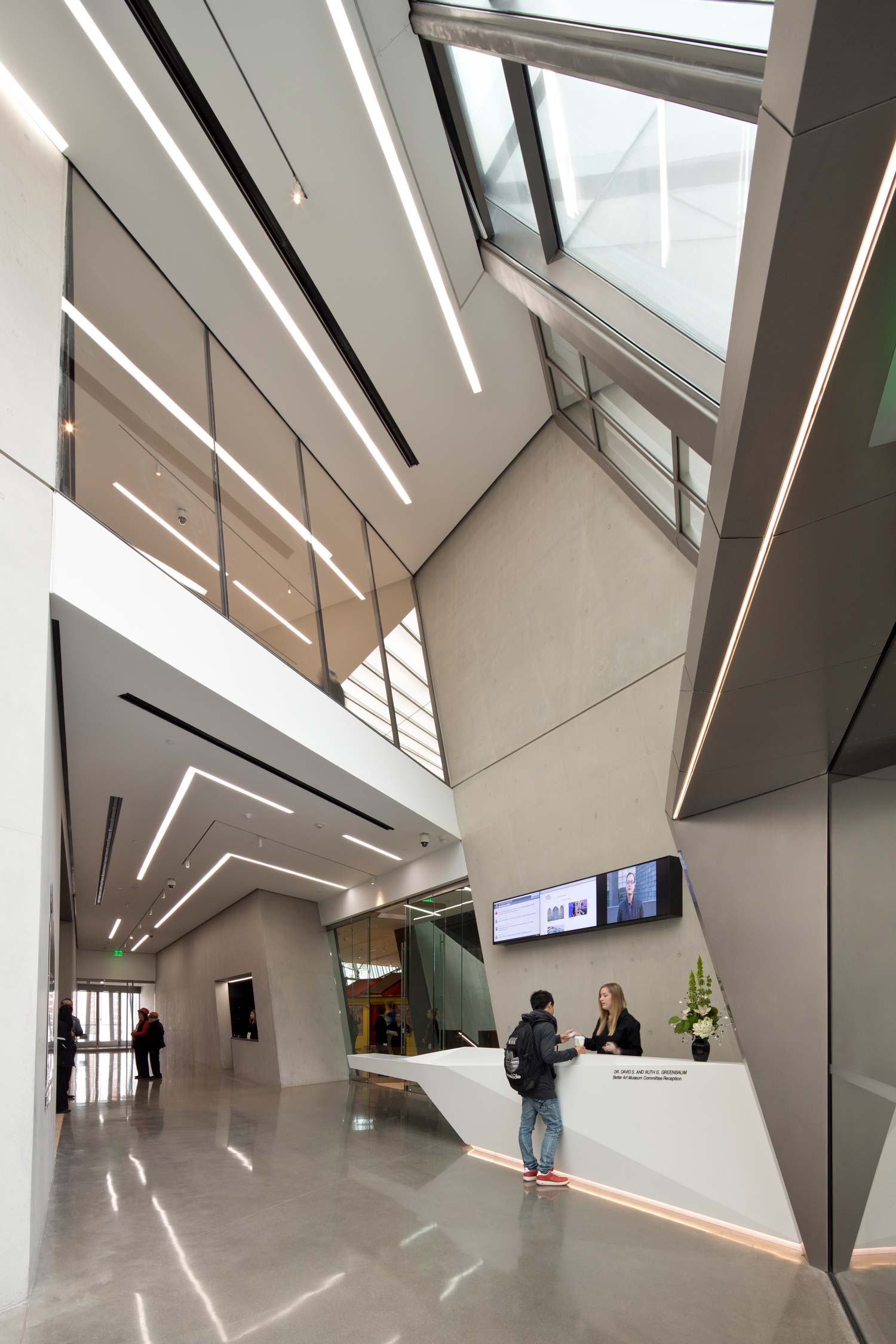

The building, built to allow students a hands-on experience of curating art, provides three storeys of exhibition space, comprising a basement and two upper floors. The other 30 % of the floor area is broken down into various amenities including an education wing, museum shop, visitor café and study centre.

The structural solution for this irregular design, comprising intersecting planes of cladding, involved a mixture of steel and concrete. Concrete frame was used where possible, which provides thermal mass and minimises vibration within the large gallery areas. Additional steel framing was used for the non-structural cladding system and in areas where large column-free spaces were required. The cladding, which has drawn considerable press attention, comprises folded stainless steel laid at angles that highlight the geometry of the structure.

Over the Contemporary Permanent Gallery on the ground floor, the roof spans 13 m across using cellular steel beams, which also allow the transfer of services within the structure of the floor. Similarly, in the north-west corner a large double-aspect window set at an incline is framed in 10 m steel cantilevers and supported by adapted steel trusses above.

Deflection is a potential problem with steel, and the criteria were discussed in depth with both design team and supply chain. To ensure accuracy in crucial details such as these, we developed a structural model alongside our bespoke analytical software, which was loaded onto a central BIM system accessible to all involved in the design, allowing collaborative solutions to be found.

Awards.

2014 AISC IDEAS Award

2013 AIA Michigan Honor Award

2013 IStructE Structural Awards – Shortlisted
