One Park Drive.

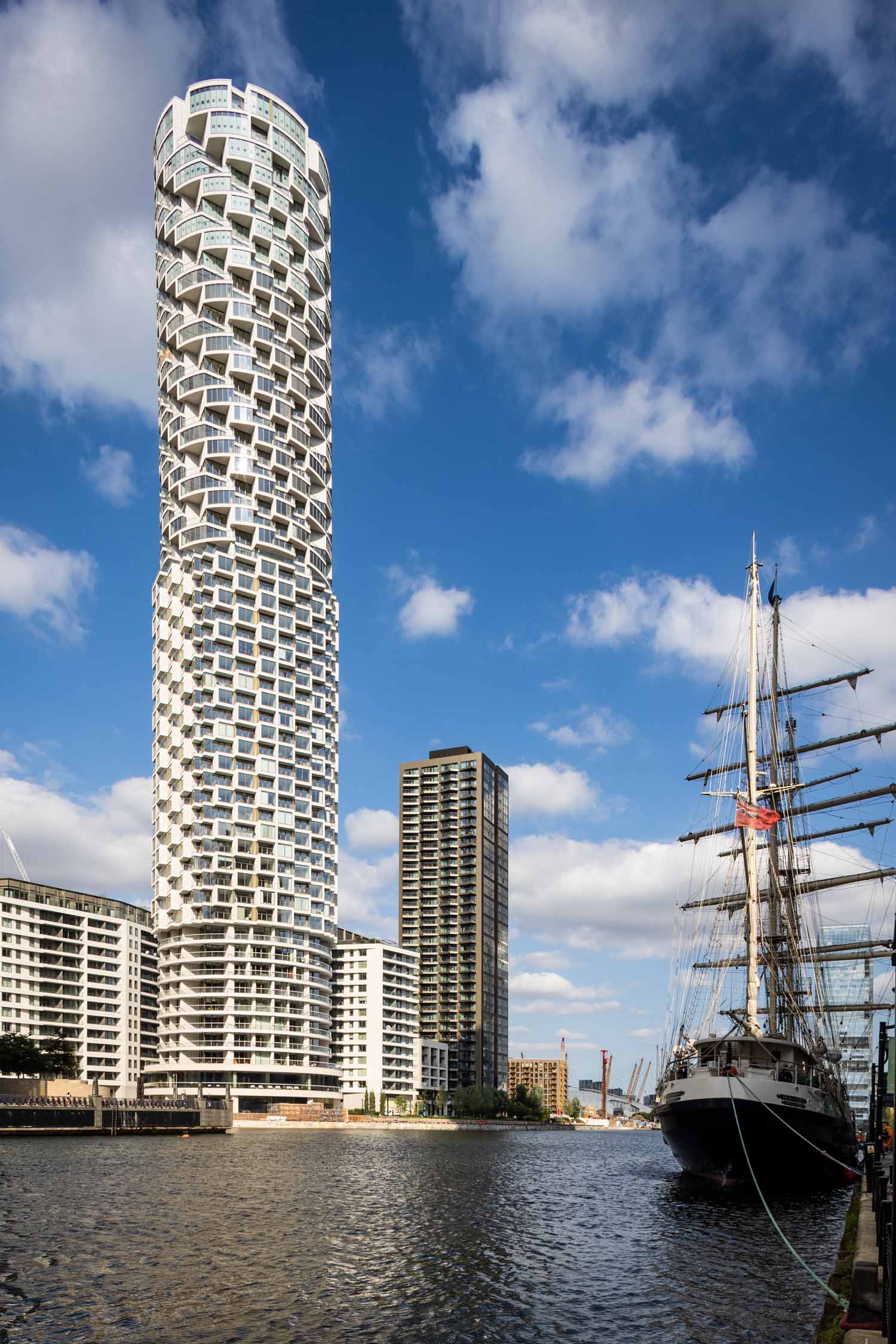

Part of the Wood Wharf development for Canary Wharf Group, this 58-storey tower will stand approximately 210 m tall, providing quality residential space with amenities such as a gym, pool and lobby on the lower three floors.

An evolving residential tower with a staggered, shifting façade in a major London development

Location
London, UK
Client
Canary Wharf Group
Architect
Herzon & de Meuron
Project Value
confidential
Floor Area
57,615 m²
Status
on site
Expertise
Structures

The site is located within the old dock, so the tower is constrained only by the new Cofferdam that forms the boundary. The Wood Wharf masterplan extends to the north and east, where the tower extent will adjoin to the surrounding buildings. Since the site has been reclaimed from the dock, the enabling contract had many technical complications including building up the original dock bed level to the new basement profile.

The substructure consists of 1.8 m-diameter piles, with a higher frequency of 1.5 m-diameter piles beneath the core, founded in the Thanet sands at depth. The 2.5 m-deep raft extends beyond the retaining wall that forms part of the double-storey basement wall.

The structural concept adopted for the tower superstructure typically consists of reinforced concrete flat slabs supported by reinforced concrete blade walls and columns. The core of the tower is located centrally within the internal layout and is partially enhanced by frame action of the surrounding tower.

There are three main types of residential typologies: Loft, Cluster, and Bay Window. These typologies offset and rotate around the building to form the tower’s distinctive geometry, resulting in an evolving façade. A critical design consideration has been the tolerance and movement criteria that the floor slabs have been designed to meet, whilst maintaining the consistent shallow floor zone.
